SMT Cutting Jig (8mm-72mm) - CJ172

SMT Cutting Jig (8mm-72mm) - CJ172

Regular price $695.00 CAD
Regular price Sale price $695.00 CAD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

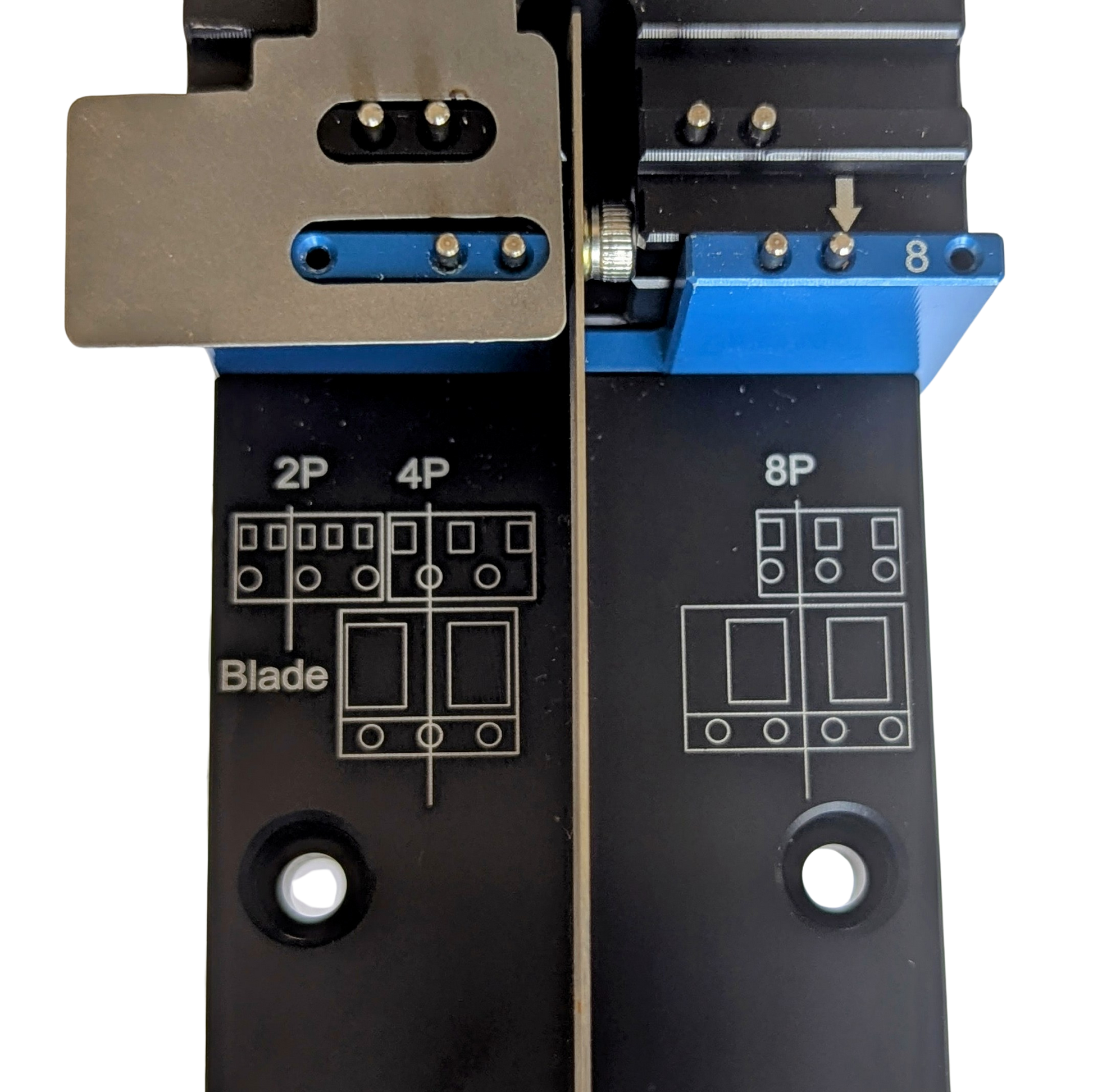

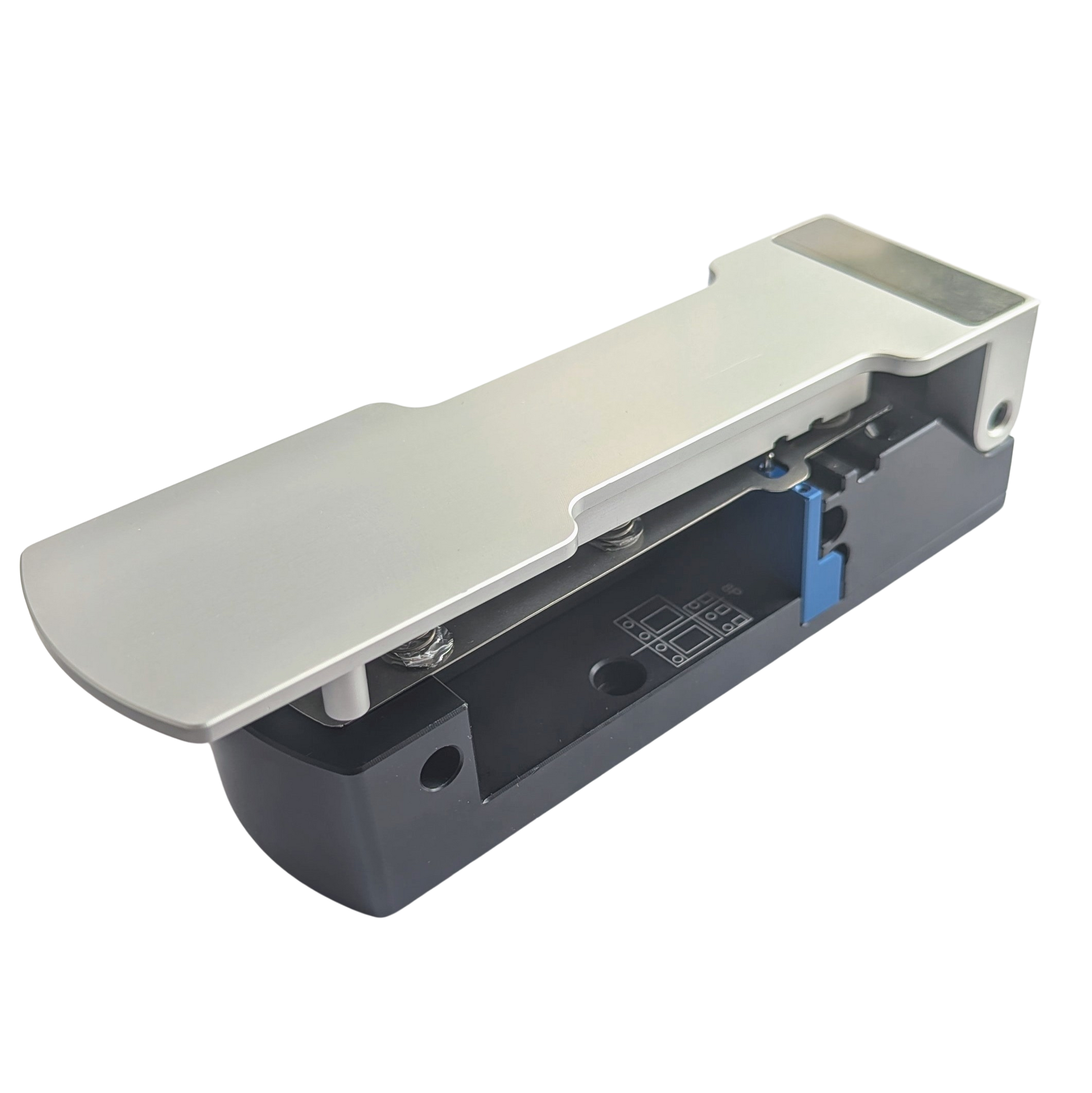

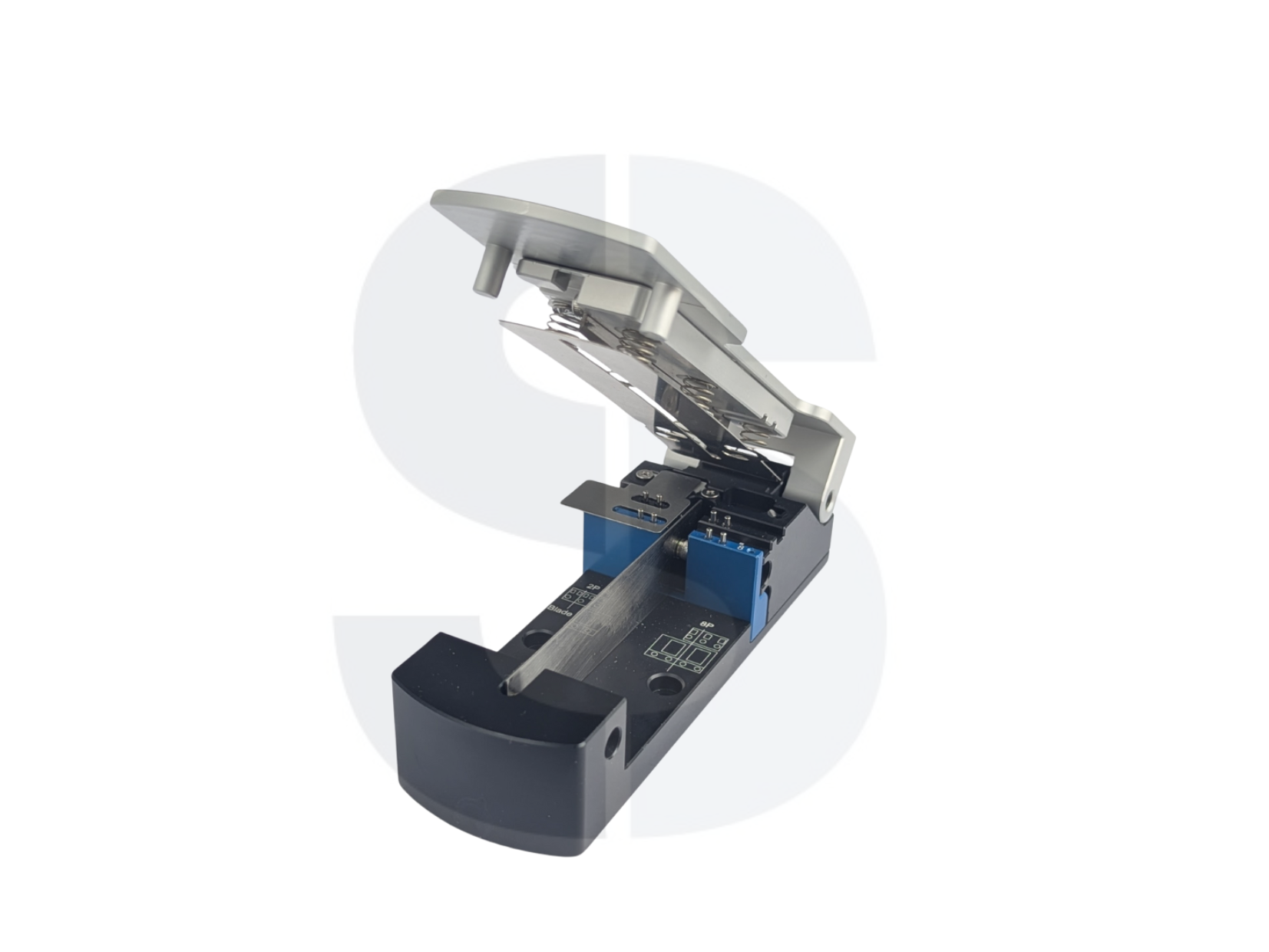

Increase efficiency and precision in your SMT production process with the CJ172 Cutting Jig, designed to cut carrier tapes from 8mm to 72mm with perfect 90-degree accuracy. Featuring a dual-blade mechanism with blades on both the top and bottom, this tool ensures sharp, clean, and accurate cuts every time. Its patented shift function allows for easy adjustment to accommodate various pitch cuts, while alignment pin blocks on both sides guarantee precise positioning for flawless splicing.

For added convenience, this jig includes a cover tape peel-off function. Before pressing the cutting lever, the cover tape is peeled from right to left, ensuring it lifts slightly when the new reel starts. This prevents adhesion issues and improves the splice, making reel transitions smoother and optimizing feeder performance.

Ideal to use with the DSJL or DPJL Splice Tapes, it can also be conveniently attached to the SC172 Splice Cart for stability and accessibility..

Features:

100% No Error Solution: Delivers consistent, reliable 90-degree cuts, reducing splicing errors and maximizing productivity.

Wide Compatibility: Cuts SMT carrier tapes from 8mm to 72mm, suitable for various component sizes.

Dual-Blade Cutting Mechanism: Top and bottom blades provide sharp, even cuts, minimizing errors and misalignment.

Patented Shift Function: Easily adjustable for different pitch cuts, enhancing versatility and precision.

Alignment Pin Blocks on Both Sides: Ensures precise tape positioning, reducing the risk of misalignment.

Reduces Reel Change Downtime: Streamlines reel changes, improving production efficiency.

No Machine Stoppages: Enables accurate splicing without halting machine operations, minimizing interruptions.

Prevents Feeder Jams: Precise cuts reduce the likelihood of feeder jams, ensuring smooth operation.

Attachment Capability: Easily attachable to a splicing cart for accessible, stable use.

Durable and Ergonomic: High-quality construction and ergonomic design reduce operator fatigue, making it suitable for long-term use.

For ultimate versatility, this tool is also available as an 'All-in-One' Splice Tool (ST132), featuring a foldable splice jig that combines cutting and splicing in one efficient, space-saving solution.

Material

Aluminum

Availability

In stock: Ready for immediate shipment.
Out of stock: 2-3 week lead time for manufacturing and delivery.

Dimensions

17cm x 5m x 5cm

Weight

.5kg
